Zirconia Special-Shaped Ceramic Processing Custom Structural Parts
Product Overview
With the rapid development of modern science and technology, the quality requirements of materials in all walks of life are getting higher and higher. Because of its excellent physical and chemical properties, zirconia ceramics have the characteristics of acid and alkali resistance, insulation and heat insulation that superhard materials do not have, and they have certain self-lubricity. Lai Yue is favored by engineers.
In terms of structural ceramics, zirconia ceramics are widely used in the field of structural ceramics due to their advantages of high toughness, high flexural strength and high wear resistance, excellent thermal insulation performance, and thermal expansion coefficient close to that of steel. Mainly include: Y-TZP grinding balls, dispersing and grinding media, nozzles, ball valve ball seats, zirconia molds, miniature fan shafts, fiber optic pins, fiber optic sleeves, drawing dies and cutting tools, wear-resistant knives, watch cases and Watch straps, light golf bats and other room temperature wear-resistant zero devices.
Product parameter table
| Project | unit | zirconium oxide |
| Physical properties | Density | g/cm3 | ≥6 |
| Elastic Modulus | Gpa | 210 |
| Hardness | Gpa | 10-12 |
| Bending strength | Mpa | 600-1200 |
| Compressive strength | Mpa | 1700-2500 |
| Fracture toughness | Mpa·m1/2 | 6-12 |
| Thermal expansion rate (room temperature-1000℃) | x10-6/k | 10.3 |
| Specific heat | J/Kg·k | 400 |
| Thermal conductivity | w/m·k | 2-3 |
| Poisson's ratio | | 0.31 |
| Breakdown strength | kv/cm | ≥150 |
Product advantages
Characteristics: Insulation, wear resistance, high temperature resistance, high strength, high hardness, impact resistance, non-magnetic, corrosion resistance, high pressure resistance, oxidation resistance, environmental protection
1. Excellent high temperature resistance, can be used as induction heating tube, refractory material, heating element;
2. Zirconium ceramic structural parts have sensitive electrical performance parameters and can be used in oxygen sensors, solid oxide fuel cells, and high-temperature heating elements;
3. Zirconia ceramics have sensitive electrical performance parameters and are mainly used in oxygen sensors and solid oxide fuel cells.
Applications
Due to its excellent physical and chemical properties such as high hardness, high strength, high toughness, extremely high wear resistance and chemical resistance, zirconia has been used in ceramics, refractory materials, machinery, electronics, optics, aerospace, It is widely used in various fields such as biology and chemistry.
Product Picture
Zirconia ceramics have phase transformation toughening and micro-crack toughening, so they have high strength and toughness. They are known as "ceramic steel", and its fracture toughness is the highest among all ceramics.
Product packaging
Carton packaging or according to customer needs
FAQ
1. Are you a businessman or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What is the product packaging?
Carton or according to customer requirements
|
|

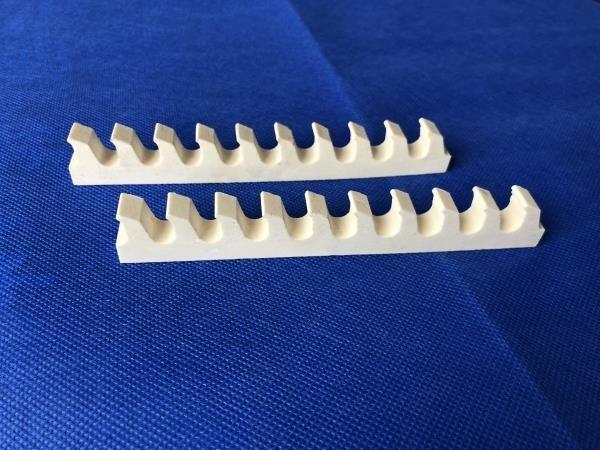

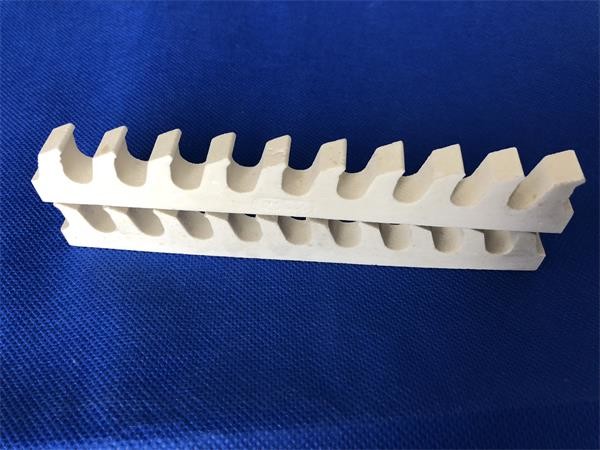

12Gpa Zirconium Oxide Ceramic Images
|
