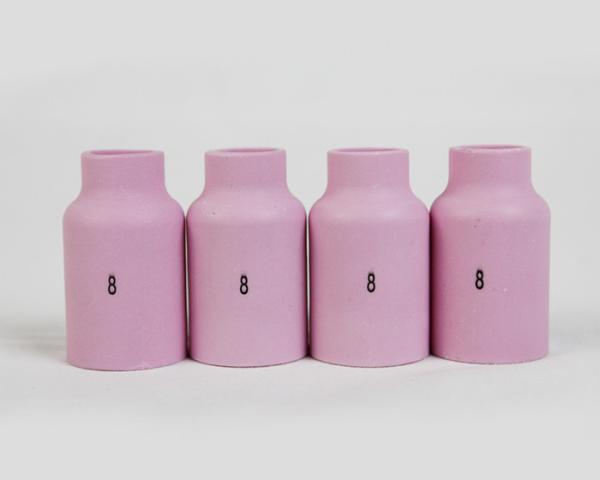

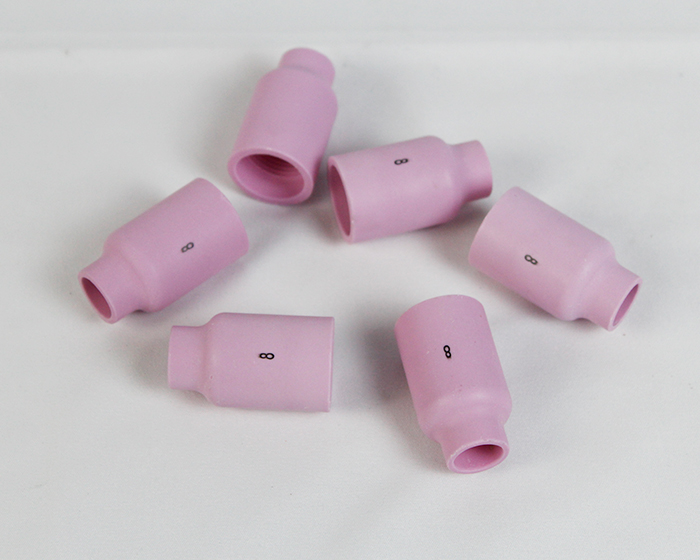

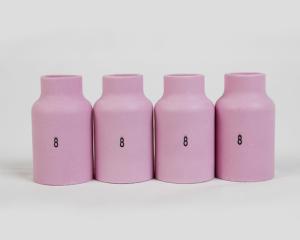

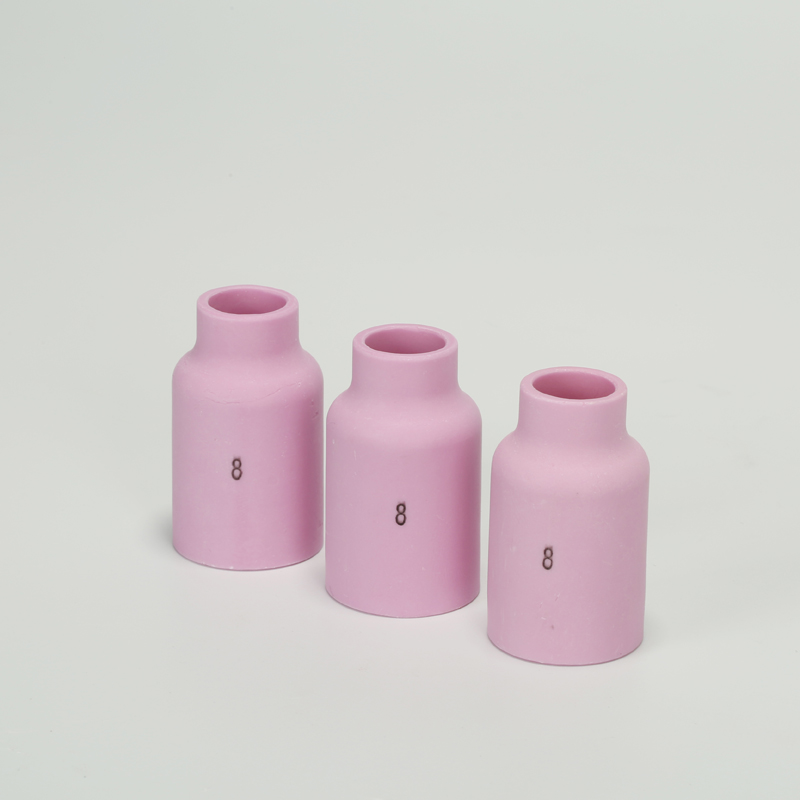

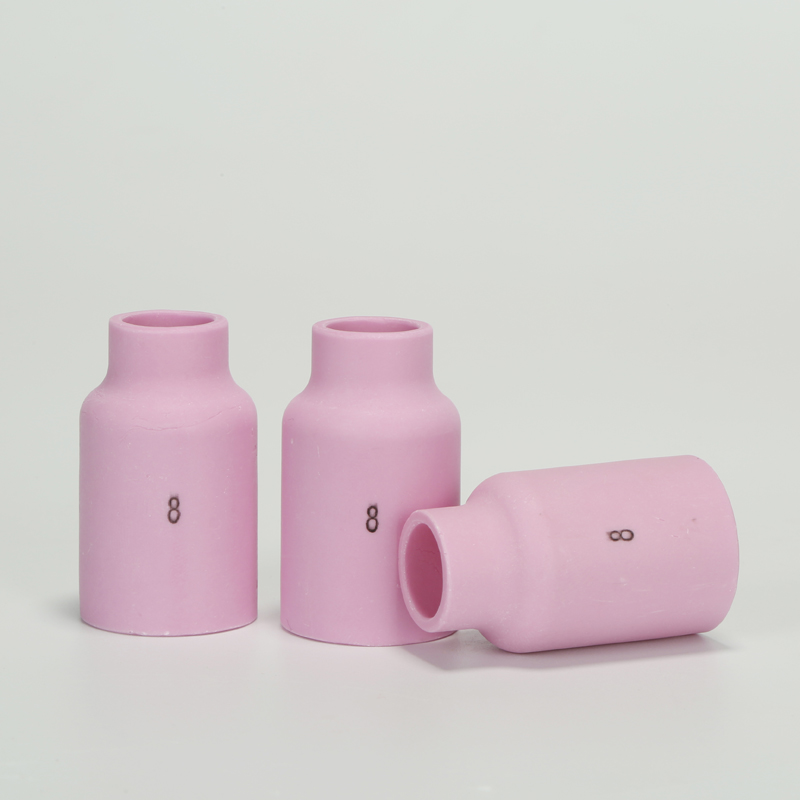

South Korea 350 series Alumina argon nozzles High temperature ceramic nozzlesy
Product Overview
Alumina nozzle
- Alumina ceramic is a ceramic material with alumina as the main body, which is used for thick film integrated circuits. Alumina ceramics have better conductivity, mechanical strength and high resistance.
The company has an independent plant, self-produced and sold, perfect technology and modern production workshop. Each process is produced strictly in accordance with the process, ensuring quality and quantity.
The company's integrity, strength and product quality have been recognized by the industry. Friends from all walks of life are welcome to visit, guide and negotiate business.
Product parameter table
| Material
Project | Alumina AL203 | Silicon carbide sic | Silicon nitride sin | Silicon nitride sin |
| Color | Ivory | black | black | Milky white, gray black |
| Content(%) | 99.5 | …… | …… | …… |
| Main features | - Excellent high frequency electrical insulation
-
Good wear resistance -
preservative -
Strong -
High hardness | - Good high temperature strength
- High thermal conductivity
- Strong alkali resistance
- Wear-resistant
- Lightweight
| - Good high temperature strength
- Strong impact resistance
- Strong corrosion resistance
- Lightweight
| - High strength and high impact resistance
- Good self-lubricating
- Strong alkali resistance
- Smooth surface
- Good toughness
|
| The main purpose | - Wear parts
- High temperature parts
- Corrosion resistant parts
| - Machinery Seal
- Sliding parts
- High temperature parts
| - Molten metal parts
- Metal plasticity
- Processed parts
| - Industrial knives
- Pump parts
- Wear parts
|
| Density | Kg/m³ | 3.9*10 | 3.16*10 | 3.3*10 | 6.0*10 |
| Mechanical behavior | Vickers hardness | Gpa | 16.0 | 23.0 | 14.0 | 13.2 | 12.7 |
| Flexural strength | Mpa | 360 | 450 | 1020 | 1000 | 1470 |
| Compressive strength | Mpa | 2350 | …… | …… | …… | …… |
| Fracture toughness | Mpa | 4 | 2-3 | 7 | 4-5 | 4-5 |
| Thermal performance | Linear expansion coefficient | 40-400℃ | ×10-5/℃ | 7.2 | 3.7 | 2.8 | 10.5 | 10.8 |
| 40-800℃ | 8.0 | 4.4 | 3.3 | 11.0 | 11.3 |
| Thermal conductivity | W/(m·k) | 32 | 200 | 27 | 3 | 3 |
| Specific heat | J/(kg·k) | 0.78*10 | 0.67*10 | 0.65*10 | 0.46*10 | 0.46*10 |
| Thermal shock resistance (in water) | ℃ | 250 | …… | ＞800 | 300 | 350 |
| Electrical performance | Dielectric strength | V/m | 15*105 | …… | 13*105 | 11*105 | …… |
| Volume resistance(20℃) | Ω·cm | ＞1014 | 108 | 1014 | 1013 | …… |
| Dielectric constant | …… | 9.6 | …… | 9.9 | 33 | …… |
| Loss factor | ×10-4 | 10 | …… | …… | 520 | ……
|
Product advantages
- long lasting
- Good electrical insulation
- Strong thermal shock resistance
- Good thermal conductivity
- Strong moisture resistance
- High temperature resistance
- Good chemical stability
- High mechanical strength
Applications
- Shipbuilding, bridges, large-scale structural facilities
- Lighting industry
- Electronics and electric heating industry
Product packaging
Packed in carton
In addition to common sizes and specifications, our company accepts drawings and samples for customization. If necessary, please contact our company directly.
FAQ
1. Are you a businessman or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What is the product packaging?
Carton or according to customer requirements
