54N Lengthened Series High Temperature Welding Accessories Ceramic Nozzle
Product Overview
Alumina nozzle 54N series
The argon arc welding nozzle is an accessory at the front end of the welding gun, which plays a protective role. Commonly known as: porcelain nozzle, argon welding nozzle
The various types of porcelain nozzles produced by the company are strictly monitored from the preparation of raw materials, processing, firing, and inspection of finished products to ensure that customers are provided with high-quality and cheap products.
Main ingredients: 95% Al2O3 (alumina)
Thermal characteristics:
- Maximum operating temperature 1700℃
- Thermal expansion coefficient: 8*10-6/℃(0--1000℃)
- Thermal shock resistance: 220T (℃)
- Thermal conductivity: 25--14w/m.R (25-300℃)
Product parameter table
| Size | Part Number | Length (mm) | Orifice (in) | Orifice (mm) | Torchdesign |
| NO 4 | 54N18 | 42 | 1/4 | 6.5 | 17/18/26 |
| NO 5 | 54N17 | 42 | 5/16 | 8.0 | 17/18/26 |
| NO 6 | 54N16 | 42 | 3/8 | 9.5 | 17/18/26 |

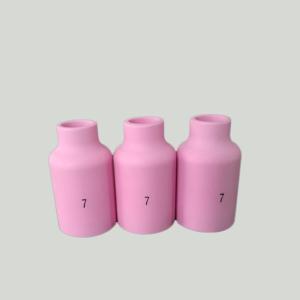

| NO 7 | 54N15 | 42 | 7/16 | 11.0 | 17/18/26 |
| NO 8 | 54N14 | 42 | 1/2 | 12.5 | 17/18/26 |
| NO 11 | 54N19 | 42 | 11/16 | 19.0 | 17/18/26 |
| Size | Part Number | Length (mm) | Orifice (in) | Orifice (mm) | Torchdesign |

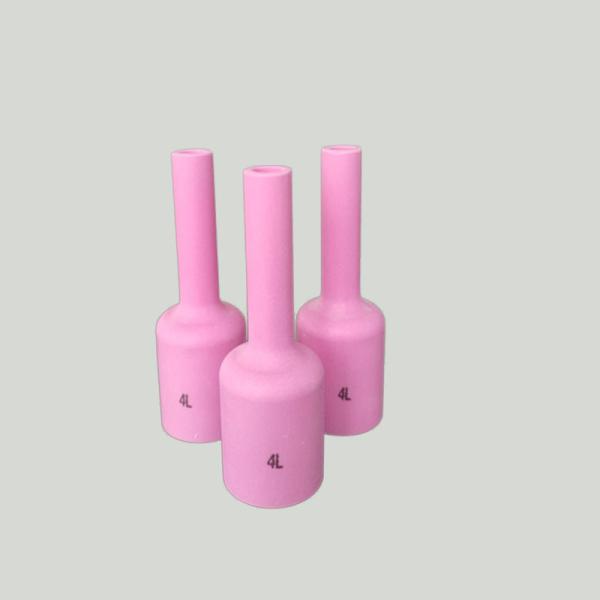

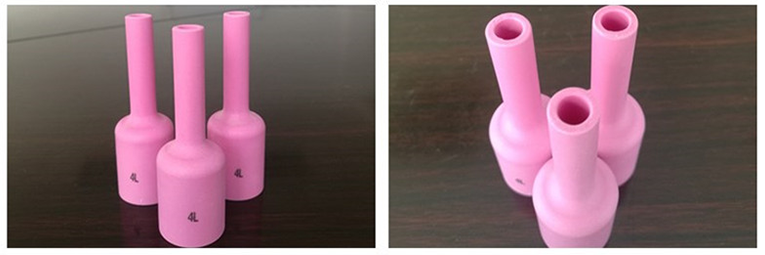

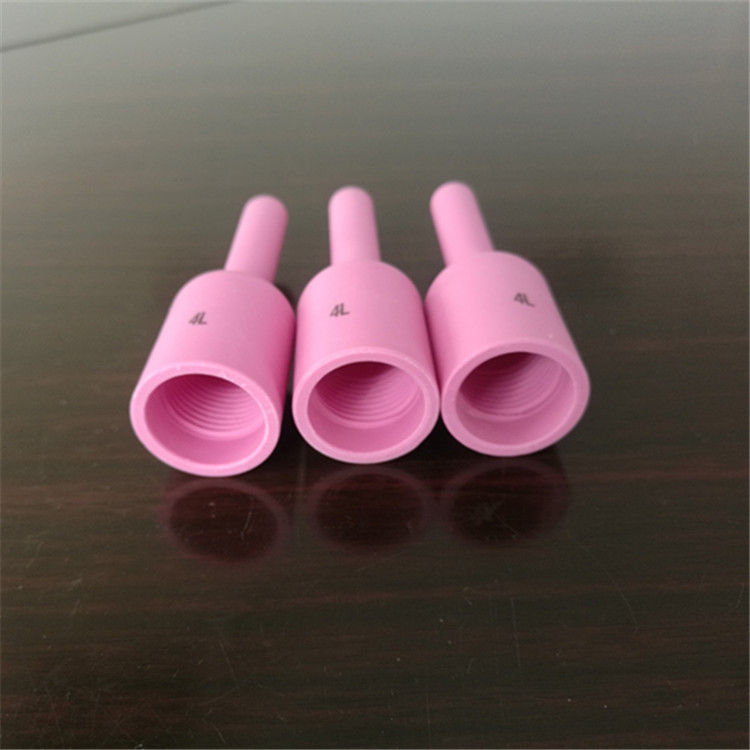

| NO 4L | 54N18L | 76 | 1/4 | 6.5 | 17/18/26 |
| NO 5L | 54N17L | 76 | 5/16 | 8.0 | 17/18/26 |
| NO 6L | 54N16L | 76 | 3/8 | 9.5 | 17/18/26 |
| NO 7L | 54N15L | 76 | 7/16 | 11.0 | 17/18/26 |
| NO 8L | 54N14L | 76 | 1/2 | 12.5 | 17/18/26 |
| Material
Project | Alumina AL203 | Silicon carbide sic | Silicon nitride sin | Silicon nitride sin |
| Color | Ivory | black | black | Milky white, gray black |
| Content(%) | 99.5 | …… | …… | …… |
| Main features | - Excellent high frequency electrical insulation
-
Good wear resistance -
preservative -
Strong -
High hardness | - Good high temperature strength
- High thermal conductivity
- Strong alkali resistance
- Wear-resistant
- Lightweight
| - Good high temperature strength
- Strong impact resistance
- Strong corrosion resistance
- Lightweight
| - High strength and high impact resistance
- Good self-lubricating
- Strong alkali resistance
- Smooth surface
- Good toughness
|
| The main purpose | - Wear parts
- High temperature parts
- Corrosion resistant parts
| - Machinery Seal
- Sliding parts
- High temperature parts
| - Molten metal parts
- Metal plasticity
- Processed parts
| - Industrial knives
- Pump parts
- Wear parts
|
| Density | Kg/m³ | 3.9*10 | 3.16*10 | 3.3*10 | 6.0*10 |
| Mechanical behavior | Vickers hardness | Gpa | 16.0 | 23.0 | 14.0 | 13.2 | 12.7 |
| Flexural strength | Mpa | 360 | 450 | 1020 | 1000 | 1470 |
| Compressive strength | Mpa | 2350 | …… | …… | …… | …… |
| Fracture toughness | Mpa | 4 | 2-3 | 7 | 4-5 | 4-5 |
| Thermal performance | Linear expansion coefficient | 40-400℃ | ×10-5/℃ | 7.2 | 3.7 | 2.8 | 10.5 | 10.8 |
| 40-800℃ | 8.0 | 4.4 | 3.3 | 11.0 | 11.3 |
| Thermal conductivity | W/(m·k) | 32 | 200 | 27 | 3 | 3 |
| Specific heat | J/(kg·k) | 0.78*10 | 0.67*10 | 0.65*10 | 0.46*10 | 0.46*10 |
| Thermal shock resistance (in water) | ℃ | 250 | …… | ＞800 | 300 | 350 |
| Electrical performance | Dielectric strength | V/m | 15*105 | …… | 13*105 | 11*105 | …… |
| Volume resistance(20℃) | Ω·cm | ＞1014 | 108 | 1014 | 1013 | …… |
| Dielectric constant | …… | 9.6 | …… | 9.9 | 33 | …… |
| Loss factor | ×10-4 | 10 | …… | …… | 520 | ……
|
Product advantages
Argon arc welding alumina welding ceramic nozzle series has the characteristics of high temperature resistance, strong reliability and price concessions.
Applications
- Shipbuilding, bridges, large-scale structural facilities
- Lighting industry
- Electronics and electric heating industry
Product packaging
Packed in carton
FAQ
1. Are you a businessman or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What is the product packaging?
Carton or according to customer requirements
